A simpler H2 monitoring setup
We believe hydrogen crossover monitoring in electrolysis should be simpler.

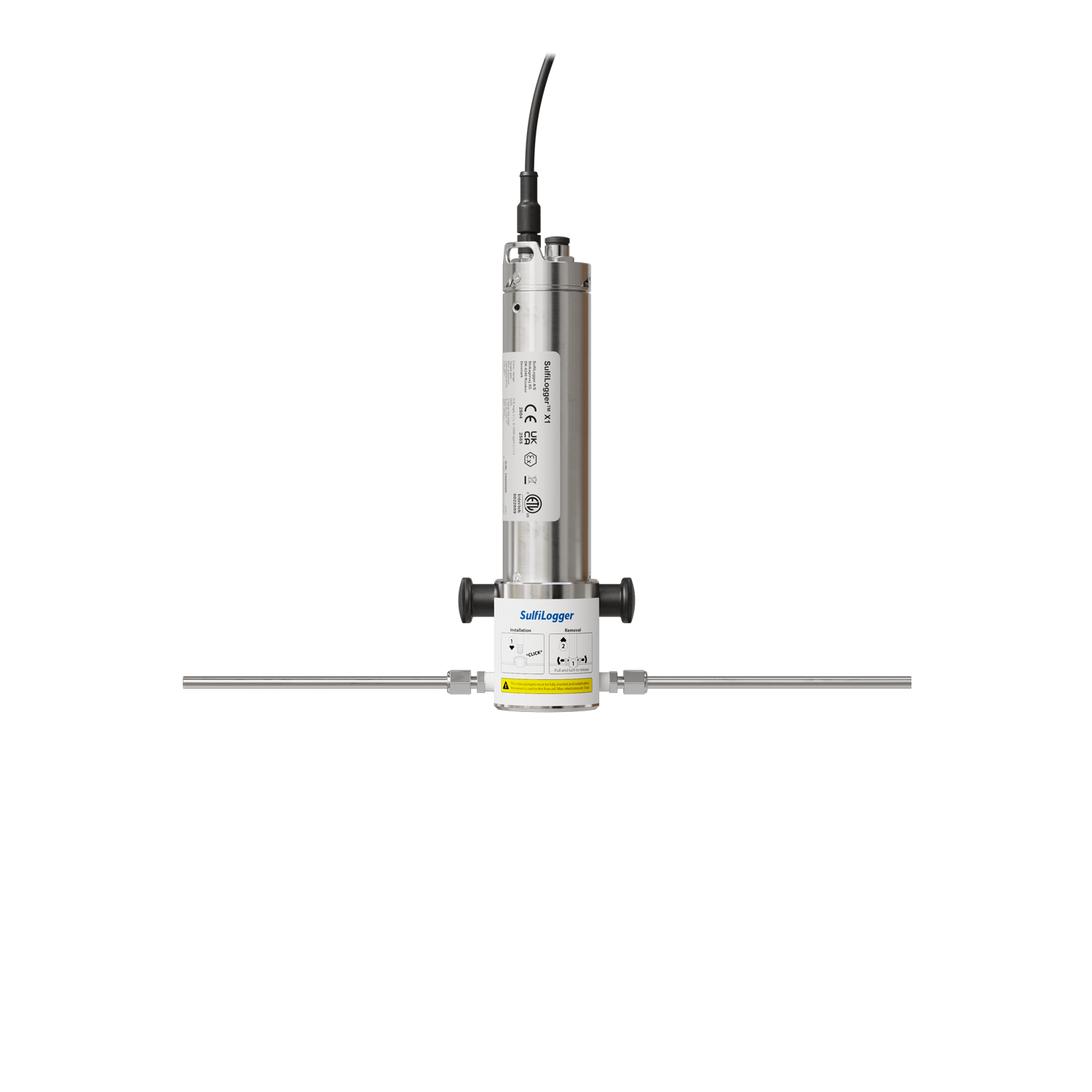

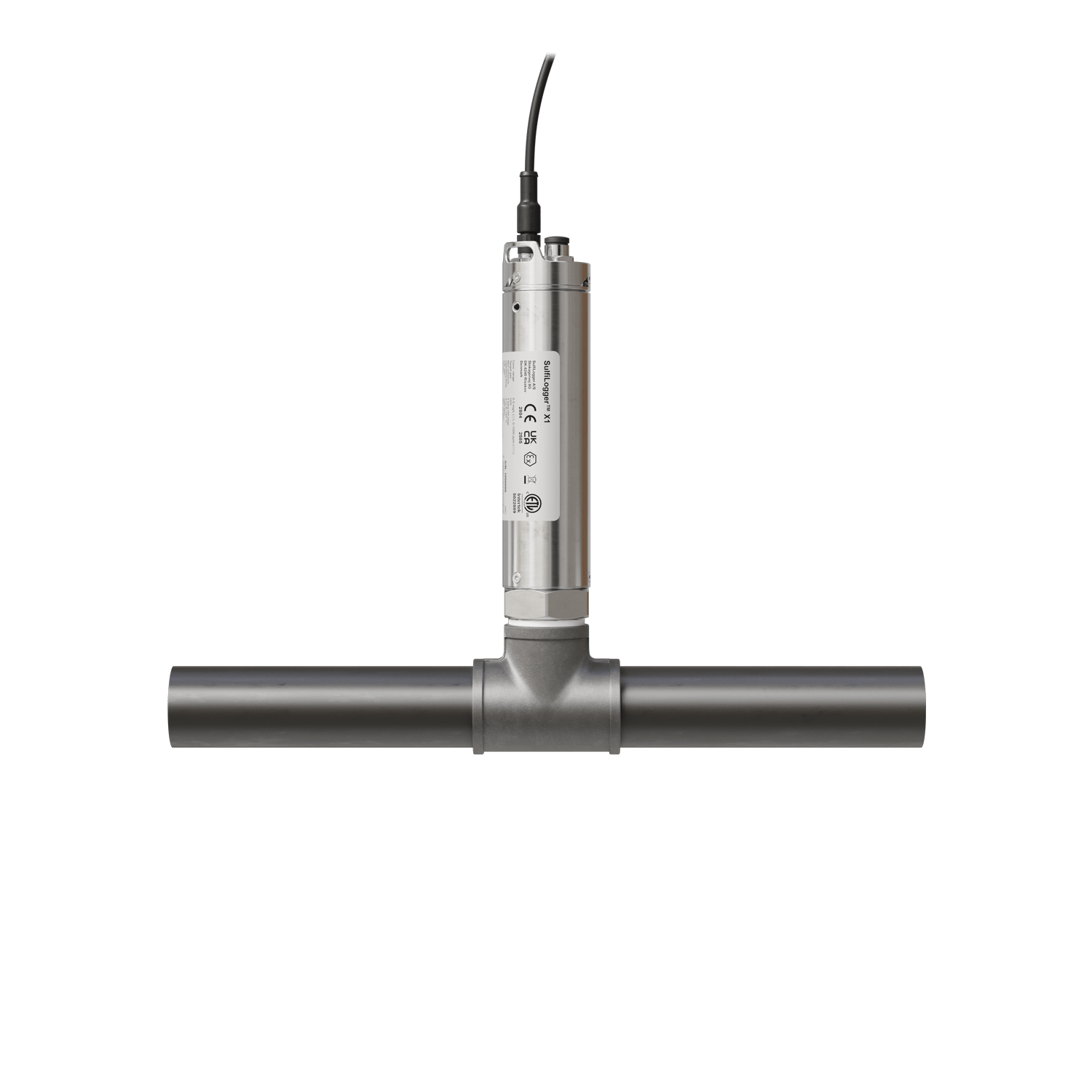

Our solution
Simple, inline monitoring.

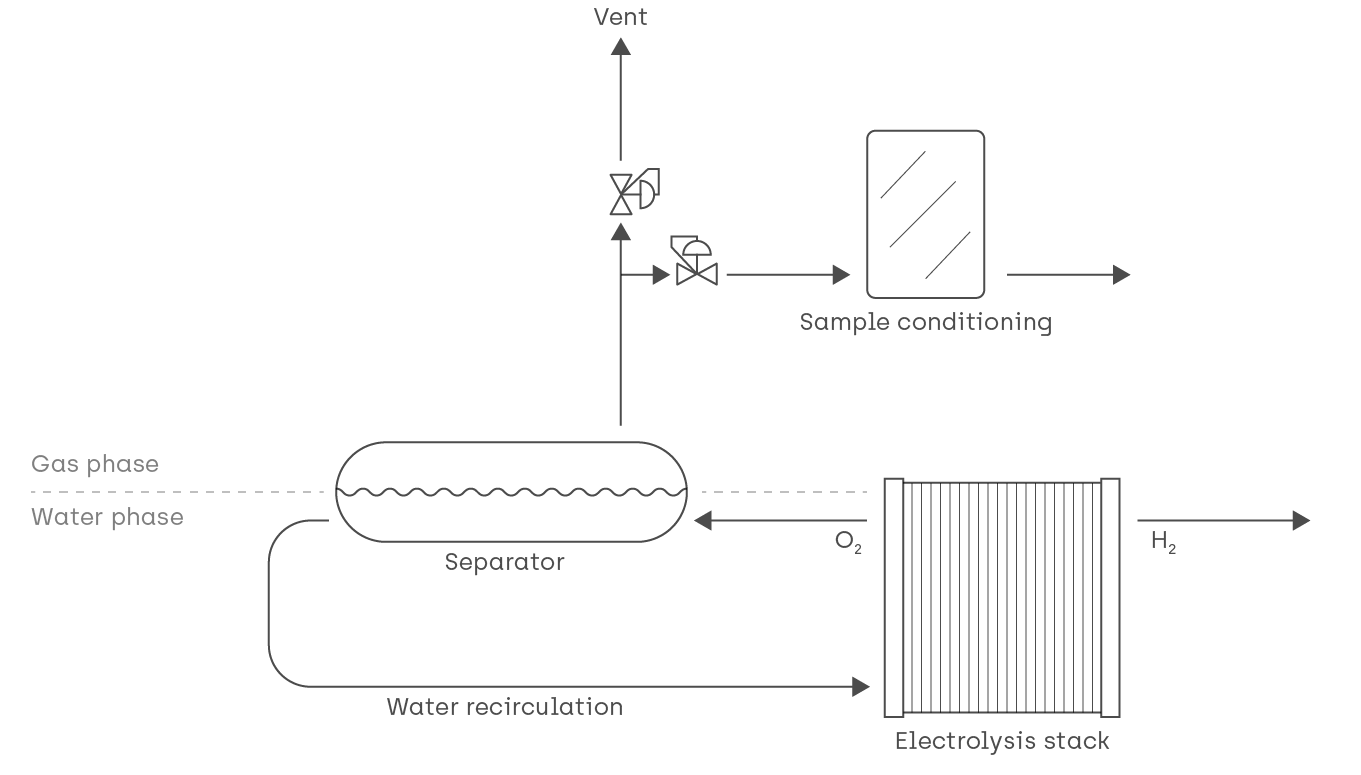

The traditional solution
Complex setup with an advanced sample conditioning system.
Products

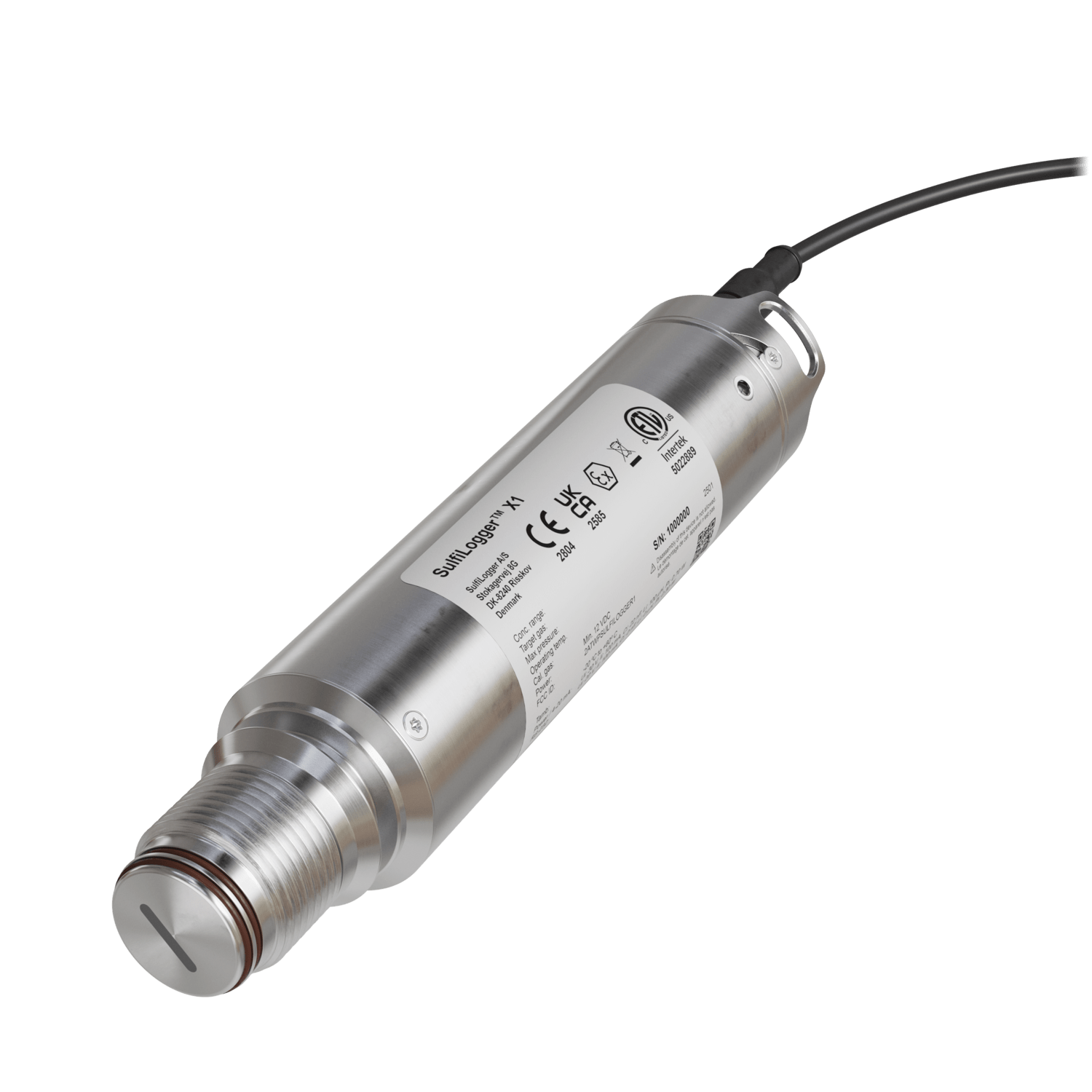

H2 sensor
Our H2 sensor technology eliminates the need for complex sample conditioning systems, offering direct, continuous measurement in harsh environments.
- PEM electrolysis
- Alkaline electrolysis
- Battery production
- eBoilers
- Hydrogen coolant in electricity turbines
- Product quality in air separation plants
- Syngas production
- Helium recovery
- Fuel cell research
- And other applications
ETL listed (cETLus marked) to Canadian and US General Safety and Hazardous (Class l, Div. 1) Locations.
ATEX, UKEX, and IECEx approved for use in Zone 0 Hazardous Areas (Ex II 1G Ex ia IIC T4 Ga).
SIL2 is pending and EXIDA runs the progress.
Measurement range
0 – 5% (Other measurement ranges upon request)
Accuracy
0.5 % of full range or ±10 % of measured value (Whichever is greater)
Detection limit
0.5 % of full range
Response time (t90)
<10 seconds
Operating temperature
0 °C to +60 °C (32 °F to +140 °F (Custom sensor systems with higher operating temperature upon request)
Operating humidity
0 to 100 %
Operating pressure
Vacuum to 10 barg (Custom sensor systems with higher operating pressure upon request)
Power
4-20 mA loop power
12-28 VDC
Data output
4-20 mA analog signal
RS-232 signal
Calibration interval
6 months recommended
Length
240 mm (9.4 in)
Diameter
Ø48.3 mm / 1½” pipe
Weight
0.85 kg (1.9 lb)
Front design
Threaded G 1″
(ISO 228-1, BSPP)
Material
Stainless Steel
EN 1.4404 (316L)
Use case
Measure H2 anywhere in PEM & Alkaline electrolysis
Reliable hydrogen monitoring is critical for the safety, efficiency, and performance of electrolysis systems. Our robust sensor technology enables measurements at multiple stages in the process to provide valuable insights into crossover rates.
For both PEM and alkaline electrolysis, it allows monitoring without extensive gas sample conditioning, enabling earlier detection of crossover hydrogen. This reliable data helps optimize performance, ensure safe operation, and reduce system complexity.
The measurement positions A, B, and C in the PEM electrolysis plant provide much faster measurements, as these locations are closer to the stack.
About us
We’re active in +30 countries
At xSensr Hydrogen, a member of the xSensr Group, we are driving the green transition with cutting-edge industrial sensor solutions.
Our sensors are currently measuring in more than 30 countries on 6 continents.
4-month trial program
Pilot program
The pilot program is an opportunity for you to evaluate if our sensor technology meets your needs and requirements.
Phase 1
Scoping
We visit your facilities and together define success criteria for the next phase: a 4-month measurement campaign.
Phase 2
4-month trial
Our sensor measures in your setup, and we manage the progress of the program via online meetings as required.
Phase 3
Evaluation
After the end of the trial, we evaluate the results and explore potential next steps for further collaboration.
